Automate TLS certificate management with vCert

This guide demonstrates using the vCert playbook feature to automate certificate request, installation, and renewal with Next-Gen Trust Security (NGTS). At the end of this walkthrough, you will:

• Configure a vCert playbook that authenticates to NGTS with a service account
• Enroll a certificate for the first time
• Configure an after-installation command to restart an application
• Configure renewal settings

note

This is an entry-level guide. Prerequisite skills include using the command line and editing YAML configuration files.

Before you begin

• Access to Next-Gen Trust Security on Strata Cloud Manager, and a registered service account with permission to manage certificates. See the Palo Alto Networks service account documentation. Note the service account's Client ID, Client Secret, Token URL, and Scope (tsg_id:<TSG_ID>).
• A Certificate Issuing Template configured for your tenant, and its API alias (used as the playbook zone).
• A Linux client where a basic NGINX web server can be installed (this guide uses Ubuntu 22.04). vCert is also available for Windows and macOS, but steps will vary.

How it works

1. Prepare NGINX — install and configure the web server.
2. Configure vCert — download vCert and create a playbook that connects to NGTS.
3. Run the playbook — enroll and install the certificate, and optionally schedule daily runs.

Step 1: Prepare the NGINX web server

1. Open or log into your Ubuntu Linux server.

2. If you have not already, install NGINX:

   sudo apt update
   sudo apt install nginx

   Confirm it's serving on port 80 with a browser pointed at the server's IP, or curl http://localhost.

3. Edit /etc/nginx/sites-enabled/default:

   sudo vim /etc/nginx/sites-enabled/default

   • Uncomment the line that reads listen 443 ssl default_server.
   • Add the following lines immediately below it:

   ssl_certificate /etc/ssl/certs/nginx-vcert-bundle.pem;
   ssl_certificate_key /etc/ssl/private/nginx-vcert.key;

4. Save and close the file.

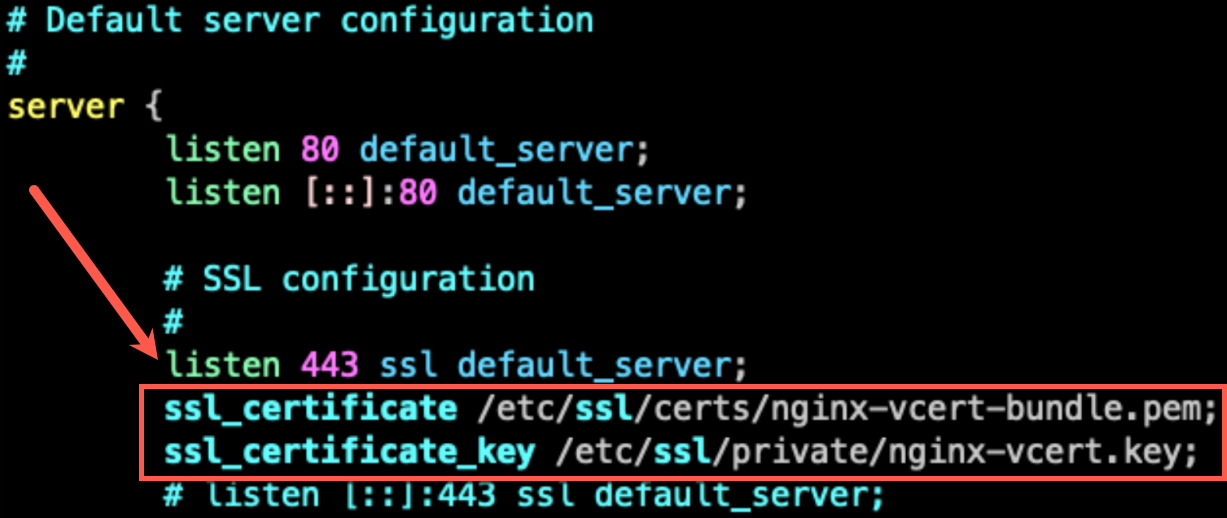

   Your edited configuration should look similar to this:



caution

Do not restart NGINX yet. vCert restarts it after obtaining a certificate.

Step 2: Configure vCert

1. Download vCert for Linux from github.com/venafi/vcert/releases. For example:

   wget https://github.com/Venafi/vcert/releases/download/v5.3.0/vcert_v5.3.0_linux.zip

2. Extract the archive and copy the vcert binary to /usr/local/bin (or another directory in your PATH):

   unzip <vcert-file>

3. Create a playbook file at ~/playbook.yaml. This playbook authenticates to NGTS with service-account client credentials and requests a certificate from your issuing template:

   config:
     connection:
       platform: NGTS
       # url is optional; defaults to https://api.strata.paloaltonetworks.com/ngts/
       url: '{{ Env "NGTS_URL" }}'
       credentials:
         clientId: '{{ Env "NGTS_CLIENT_ID" }}'
         clientSecret: '{{ Env "NGTS_CLIENT_SECRET" }}'
         scope: '{{ Env "NGTS_SCOPE" }}'          # tsg_id:<TSG_ID>
         tokenURL: '{{ Env "NGTS_TOKEN_URL" }}'
   certificateTasks:
     - name: myCertificate
       renewBefore: 10%
       request:
         csr: local
         subject:
           commonName: '{{ Hostname | ToLower }}'
         zone: "{ISSUING_TEMPLATE}"
       installations:
         - format: PEM
           afterInstallAction: "cat /etc/ssl/certs/cert.pem /etc/ssl/certs/nginx-vcert-chain.pem > /etc/ssl/certs/nginx-vcert-bundle.pem && systemctl restart nginx"
           file: /etc/ssl/certs/cert.pem
           chainFile: /etc/ssl/certs/nginx-vcert-chain.pem
           keyFile: ../private/nginx-vcert.key

   note

   NGTS credentials can be supplied as either an accessToken or the four client-credential fields shown above (clientId, clientSecret, scope, tokenURL) — but not both. NGTS does not support refresh tokens; vCert obtains a fresh token from the client credentials as needed. Set the referenced environment variables (NGTS_URL, NGTS_CLIENT_ID, NGTS_CLIENT_SECRET, NGTS_SCOPE, NGTS_TOKEN_URL) before running, or replace the templating with literal values.

4. Set zone to your Certificate Issuing Template's API alias, then save the file.

Step 3: Run the vCert playbook

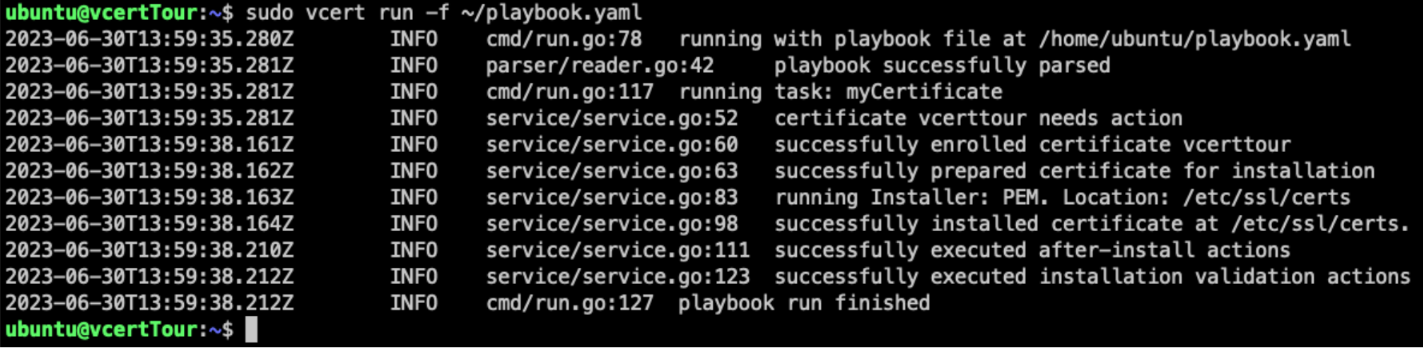

1. Run the playbook:

   sudo -E vcert run -f ~/playbook.yaml

   Because the certificate does not yet exist, this first run requests and installs a new certificate. Subsequent runs examine the installed certificate and renew it based on the renewBefore value.

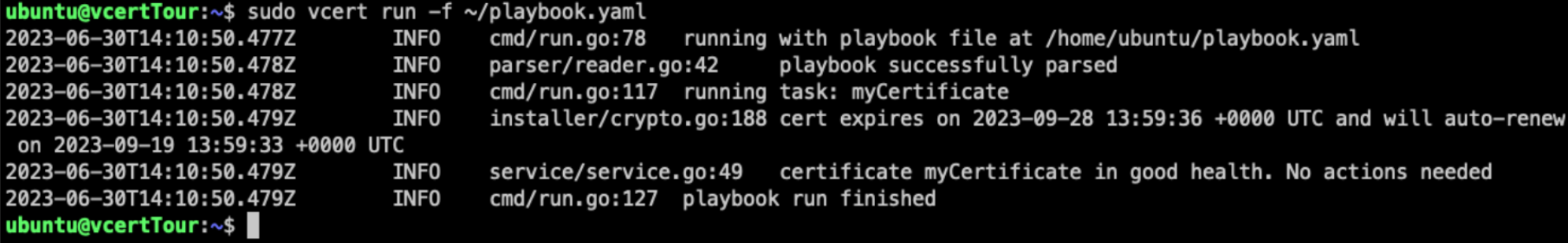

2. Run it again. Because the certificate is not yet within the renewal window, no action is taken.



3. (Optional) Adjust renewBefore to test renewal. Setting it higher than the certificate's validity period forces a renewal on the next run.

4. (Optional) Configure a cron job to run daily:

   crontab -e

   Add:

   0 23 * * *     /usr/bin/sudo -E /usr/local/bin/vcert run -f ~/playbook.yaml >> /var/log/vcert-user.log 2>&1

You have now set up automated certificate management with NGTS and vCert.
